DUSTPROOF
Vibration Control
CAE Analysis
(Vibration Control Products)

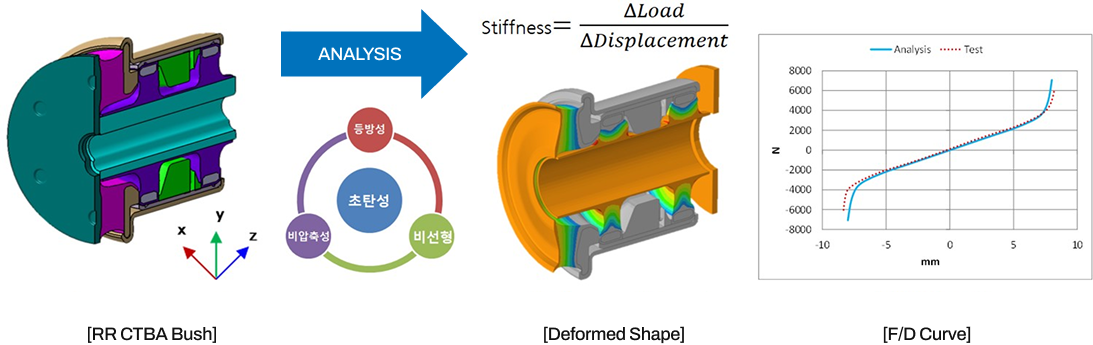

Static Characteristics
Displacement response analysis of rubber models
under static load (Load-Displacement Curve).
- Graph of response (displacement or reaction force) to input: Slope of linear section → Static Stiffness.

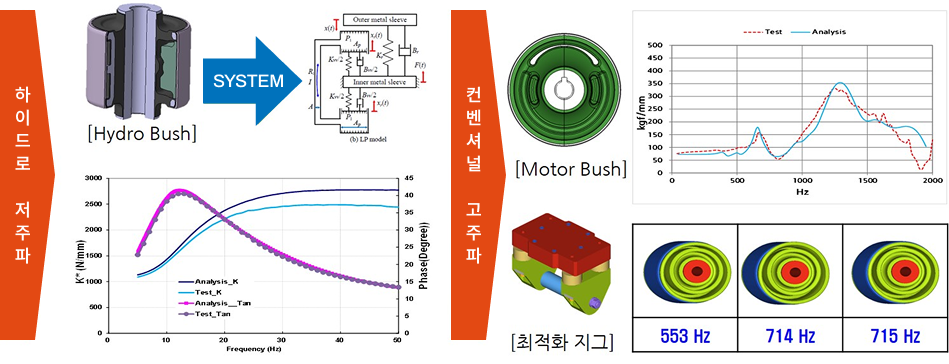

Dynamic Characteristics
Dynamic stiffness analysis by frequency for required displacements (Dynamic Stiffness-Frequency Curve).

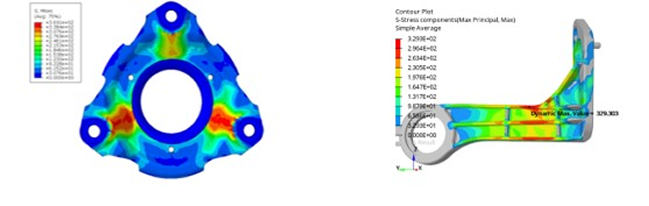

Fatigue Life
Fatigue life prediction of rubber models based on
load input conditions.

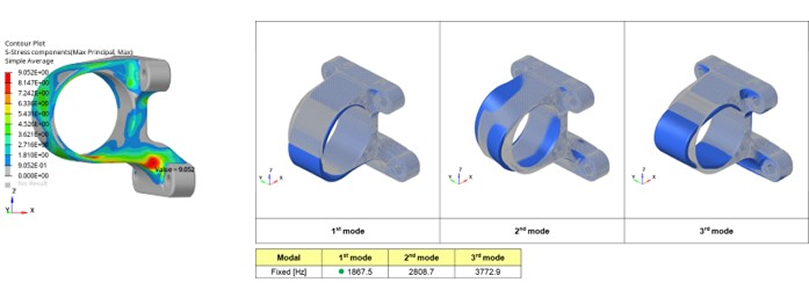

Bracket Analysis
Strength and Modal Analysis of brackets
for vehicle mounting.

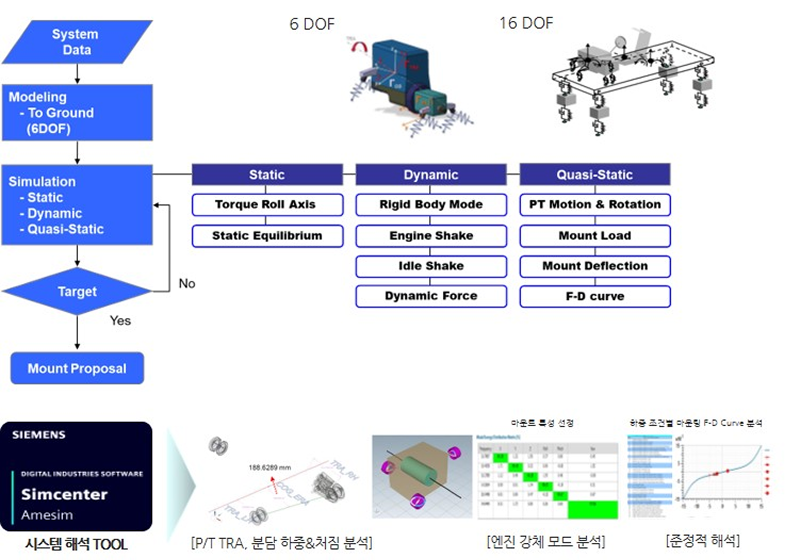

System Analysis
CAE Analysis
Predict defects and analyze causes through Mold Flow Analysis for optimal mold production.
System Analysis

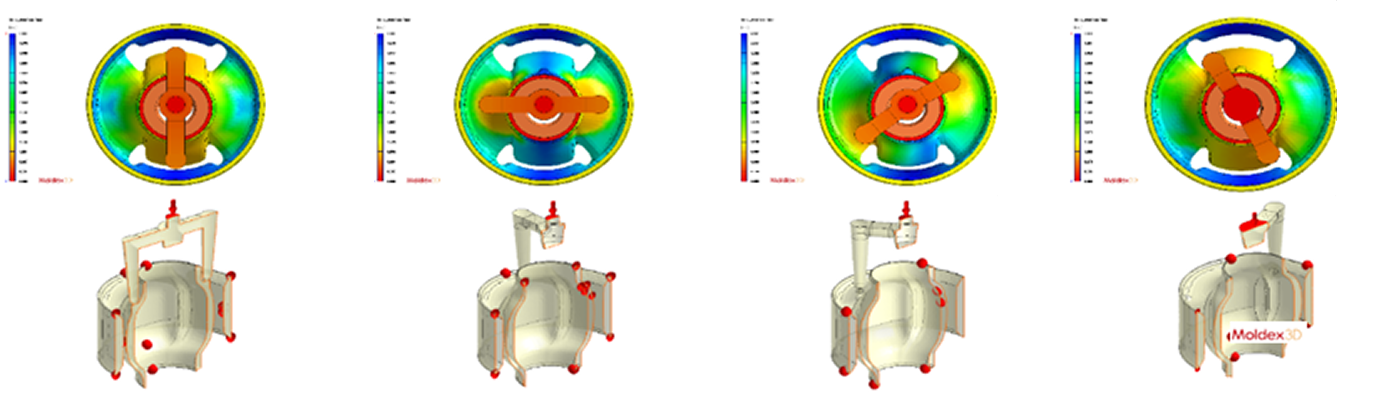

Optimal positioning and sizing of rubber Injection Gates.

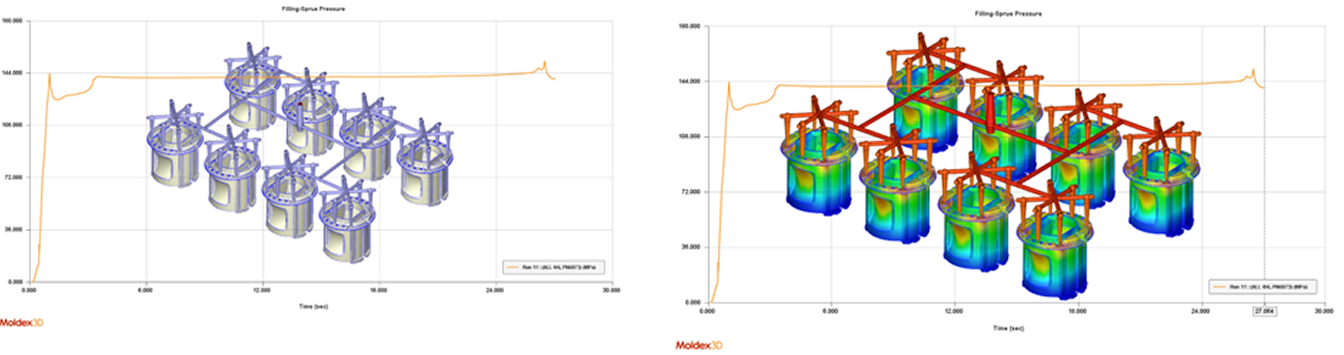

Runner Selection
Verification of Runner size and position according to
mold cooling methods.
Air Trap
Identification of air trap locations after injection
→ Selection of Air Vent location and size.
